| Part Number | Description | Related Products |
|---|---|---|
| NU3121 | The NU3121 is a synchronous high-efficiency boost converter. It integrates two low on resistance power FETs: A 10-mΩ switching FET and a 16-mΩ rectifier FET. The NU3121 features a wide input voltage range from 2.9 V to 18 V to support applications powered with single-cell, two-cell Lithium ion/polymer batteries or 5V,9V,12V, 15V power supplies. The NU3121 has 10-A continuous switch current capability and provides output voltage up to 23V. It provides a small-size solution for portable equipment. The NU3121 uses fixed frequency peak current mode control with slope compensation integrated. At the light load, the device has two operation modes selected by the MODE pin. One is the pulse frequency modulation (PFM) mode to improve the efficiency and another one is forced PWM mode to avoid application problems caused by low switching frequency. The switching frequency is adjustable from 200kHz to 1 MHz. The NU3121 also implements a adjustable soft start function. In addition, the device provides 24.5-V output overvoltage protection, cycle-by-cycle overcurrent protection, and thermal shutdown protection. | Products > Catalog Analog Power > DC/DC > |
| NU17111A | NU17111A are high efficiency, high integration Qi2 compliant transmitter IC for wireless charging. NU17111A integrate low Rdson Full bridge FETs and gate driver, 32bit 36MHz MCU core, 8KB SRAM and 128KB Flash, and fast charging block TCPC/PD/BC1.2/QC/FCP/ SCP. NU17111A integrate all critical functions of power system, such us low- EMI FET drivers, Bootstrap circuits for external resonant capacitor switches, 4.8V/3.3V/1.5V LDO and 5V Buck converter power supply, high-accuracy current measurement. Controllable slew rate/ dead time of gate driver and PWM frequency dither function can further reduce the EMI of power system. NU17111A support FSK communication, multi channels ASK demodulation, Q factor detection and power loss based foreign object detection. I2C and UART interface are used to communicate with other devices. NU17111A also include under voltage lockout UVLO, over voltage protection OVP, over current protection OCP and thermal shutdown. | Products > Wireless Charger > Wireless Charging Transmitter > |

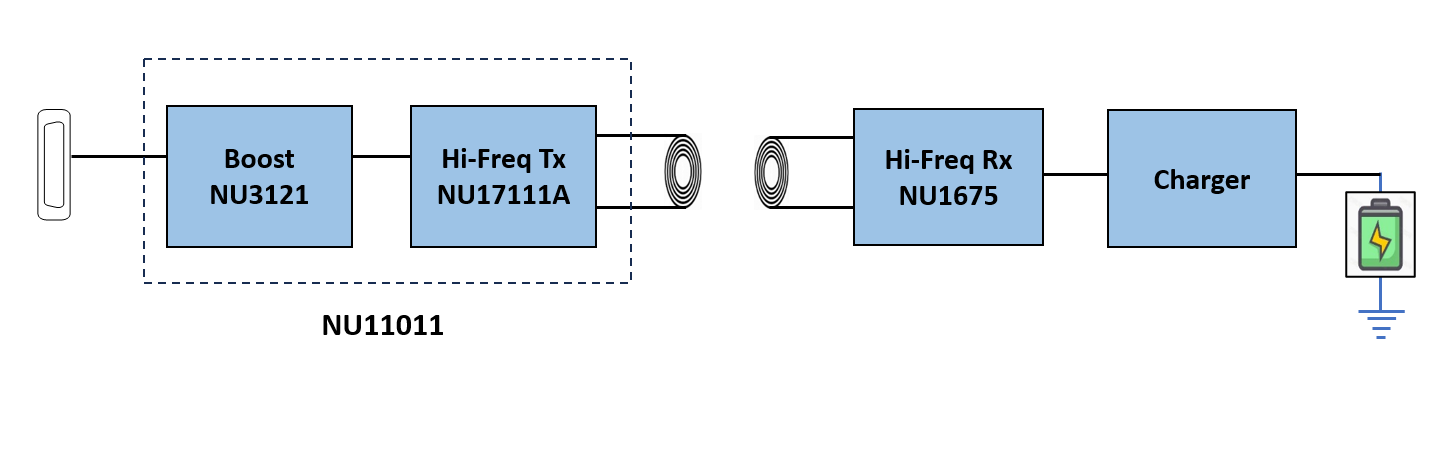

| NU11011 | NU11011 is a high frequency, high integration transmitter IC for 1.78MHz wireless charging. NU11011 integrated Boost converter, 32bit 36MHz MCU core, 8KB SRAM and 64KB Flash, and fast charging block PD/BC1.2/QC/FCP/SCP. NU11011 integrates all critical functions of power system, bootstrap circuits for external resonant capacitor switches, 4.8V/3.3V/1.5V LDO and input current measurement. NU11011 integrates input capacitor and snubber. Controllable slew rate/ dead time of gate driver and PWM frequency dither function of TX power FET can further reduce the EMI of power system. NU11011 supports FSK communication, multi channels ASK demodulation, Q factor detection and power loss based foreign object detection. I2C and UART interface are used to communicate with other devices. NU11011 also includes under voltage lockout UVLO, over voltage protection OVP, over current protection OCP and thermal shutdown. | Products > Wireless Charger > Wireless Charging Transmitter > |
