Wireless Charging Transmitter

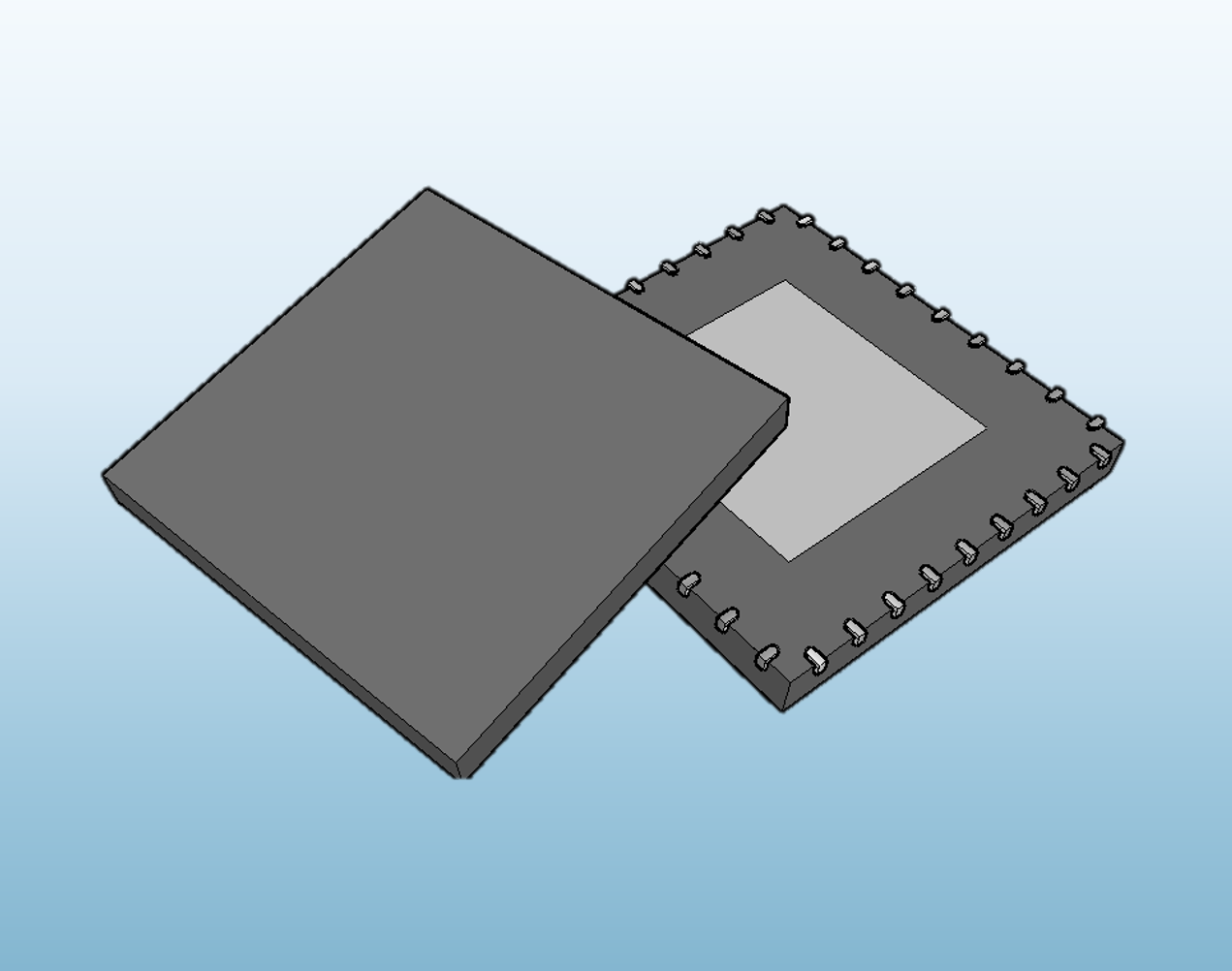

NU1520
NU1520 integrates 32bit 36MHz MCU core, SRAM and Flash which contains Application ROM, Security Protection ROM. NU1520 integrates programmable system clock source which supports 8/16/24MHz external crystal input or 8 MHz internal oscillator.
NU1520 supports 64 kHz internal low-power oscillator for Watchdog Timer and idle wake-up. 6 pins of NU1520 can be configured as interrupt source with edge detection, 4 I/O pins have wakeup function. NU1520 provide 4 channels 32-bit timers with one 5-bit pre-scalar independent clock source for each timer. NU1520 provides continuous capture function which can continuously capture rising, falling, both rising and falling edge on one signal.
