Products Wireless Charger Wireless Charging Receiver NU1652
Wireless Charging Receiver
NU1652
NU1652 is a highly integrated and efficient wireless power receiver and suitable for up to 70W output power application. It integrates a synchronous rectifier and a programable low drop-out regulator. The regulator can provide a wide range regulated voltage. NU1652 can conduct bi-directional communication with a transmitter system through ASK and FSK. The communication is compliant with WPC. NU1652 can also be operated as a transmitter (Tx) to charge another receiver. Only a few external components are needed and maximum 15W power can be transferred.
Contact Us
Key Spec
Features

• Integrated 38V High-efficiency Synchronous Rectifier.

• Integrated LDO to Provide Regulated Output Programmable VOUT from 3.5V to 30V with 8mV resolution.

• Low Dropout of LDO.

• Integrated Full Bridge Inverter and PWM Controller for transmitter.

• 1.8V Reference Voltage Output.

k-responsive OVP, OCP, OTP, OPP and SCP.

• High Accuracy Current Sense, Accuracy is 0.05%.

• 8 Channel, 15bit ADC.

• Integrated 16MHz 32Bit MCU Core.

• 400kHz I 2C Interface.

• In-system Programmability.

• Build-in Bi-directional Communications: ASK/FSK Modulation and ASK/FSK Demodulation.

• Integrated Q Factor Measurement.

• Programmable FOD Gain and Offset.

• INT Output.

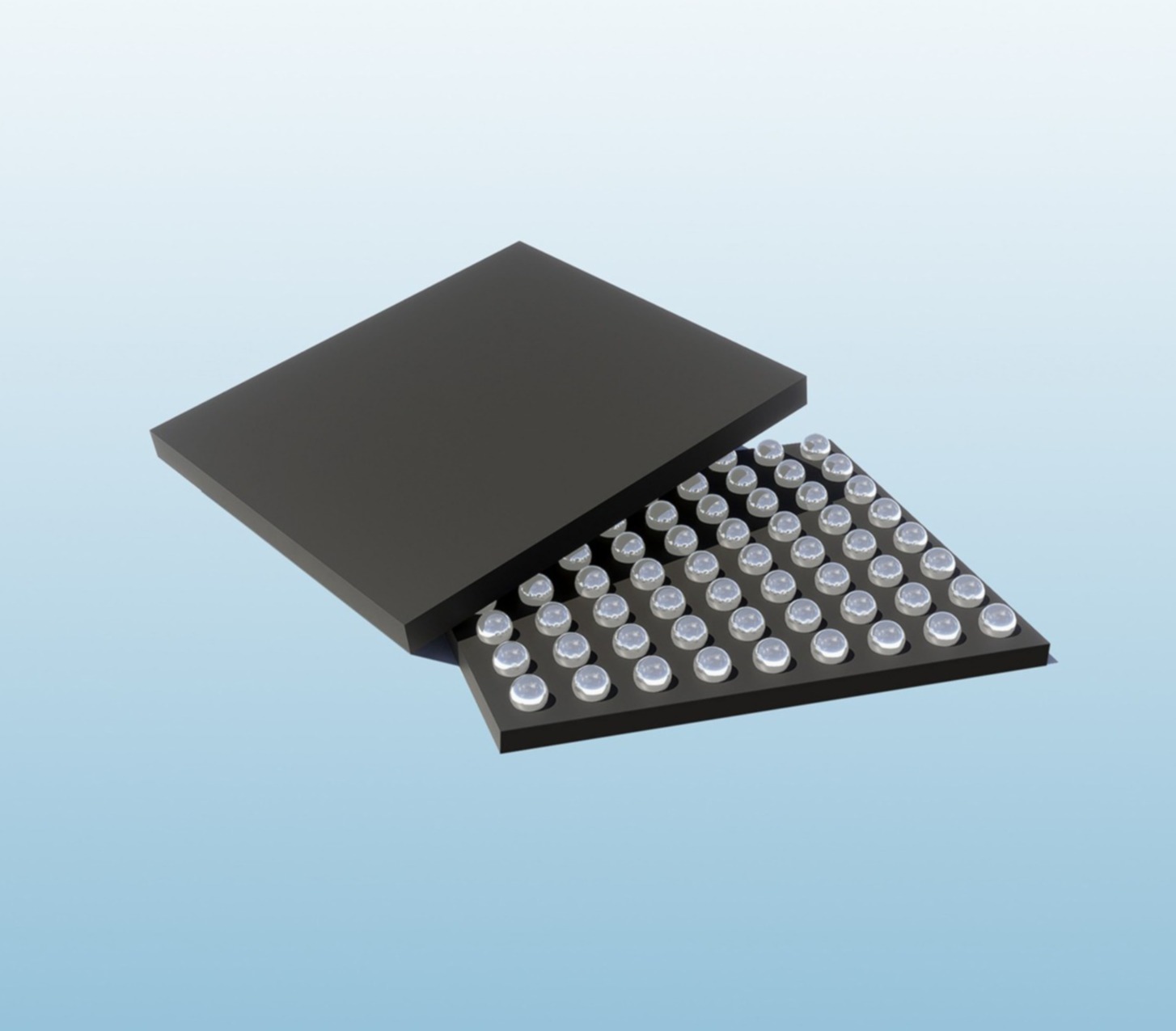

• 72-WCSP 3.24mm x 3.64mm, 0.4mm pitch.

Applications

• WPC 15W EPP Compliant Receiver with Maximum 70W Received Power.

• WPC 5W BPP Compliant Transmitter with Maximum 15W Transmit Power.

• Smartphones, Power Bank.

• Medical, Industrial and Consumer Equipment.

Datasheet Download
NU1652

2025 / 08 / 22

Download
