Switching Charger
NU6801
The NU6801 is a power management IC that features charging and discharging functions along with 3-port path management. It supports a wide range of VBUS voltage. When configured in charging mode, it can support a maximum input charging voltage of up to 16V. In discharging mode, it can support maximum output discharge voltage of up to 19V. It also integrates IBUS, IBAT, IAC, VBUS, VBAT and NTC signal sampling function. These features make the chip achieve highly customizable configurations and good compatibility.

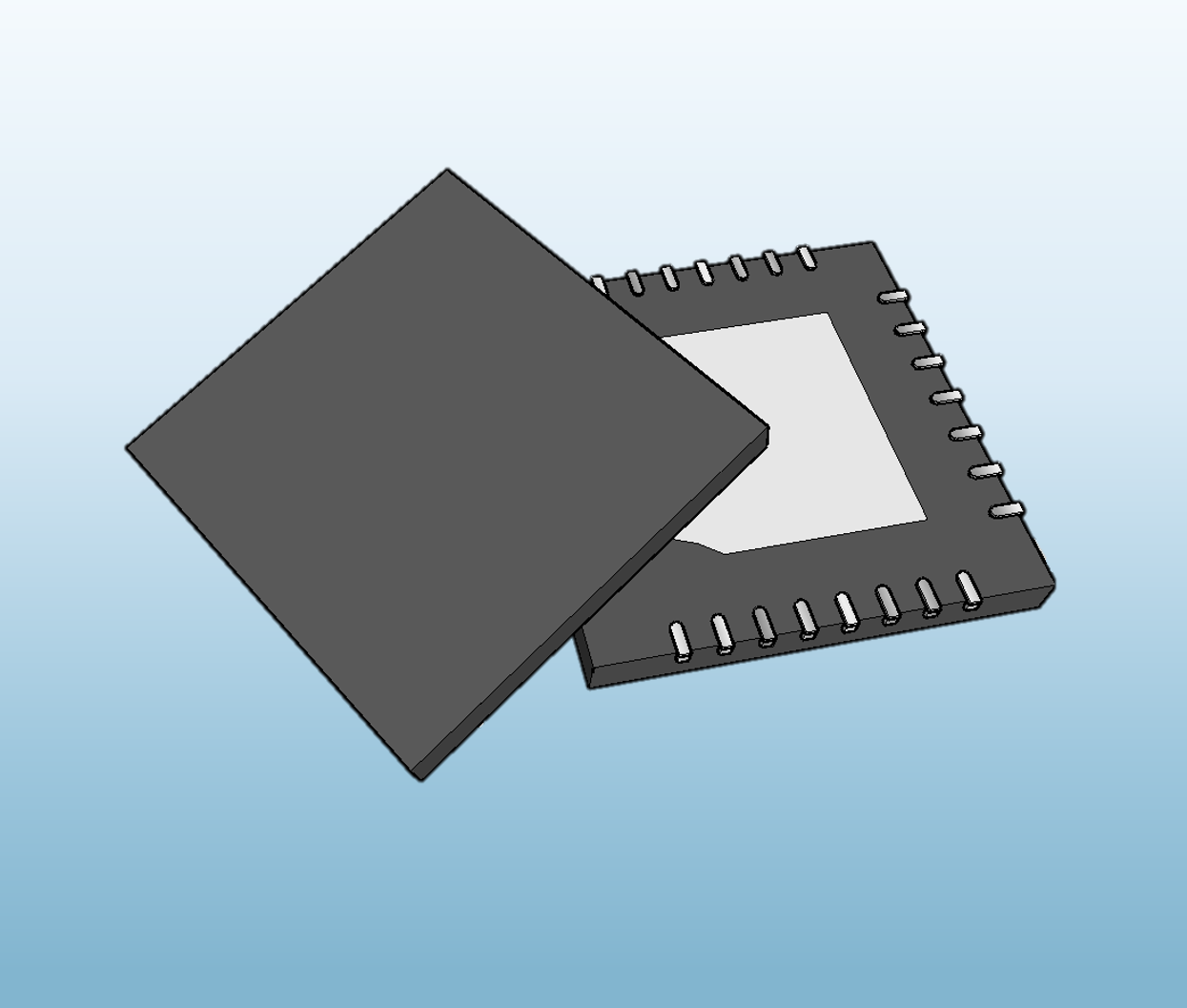

The NU6801 significantly reduces the number of external components and the layout area while maintaining high performance. The device is available in a thermally enhanced 4mm × 4mm QFN package.
